Kidney transplants are life-saving, but monitoring their health is a complex challenge. Traditional biopsy methods often rely on subjective histology, which can miss early signs of rejection or injury. Enter MMDx, the Molecular Microscope Diagnostic System, a revolutionary technology that uses gene expression to decode the molecular phenotype of kidney transplants.

In this blog, we’ll explore what MMDx is, how it works, and why it’s becoming the gold standard in transplant diagnostics.

MMDx is a machine-learning-based diagnostic platform that evaluates kidney transplant biopsies at the molecular level. Instead of relying solely on visual examination of tissue under a microscope, MMDx measures the expression of thousands of genes to detect patterns associated with:

1. T Cell–Mediated Rejection (TCMR)
2. Antibody-Mediated Rejection (AMR)
3. Acute Kidney Injury (AKI)
4. Chronic injury or fibrosis

By analyzing the molecular “fingerprint” of a biopsy, MMDx provides a precise, reproducible, and objective assessment of the transplant’s health.

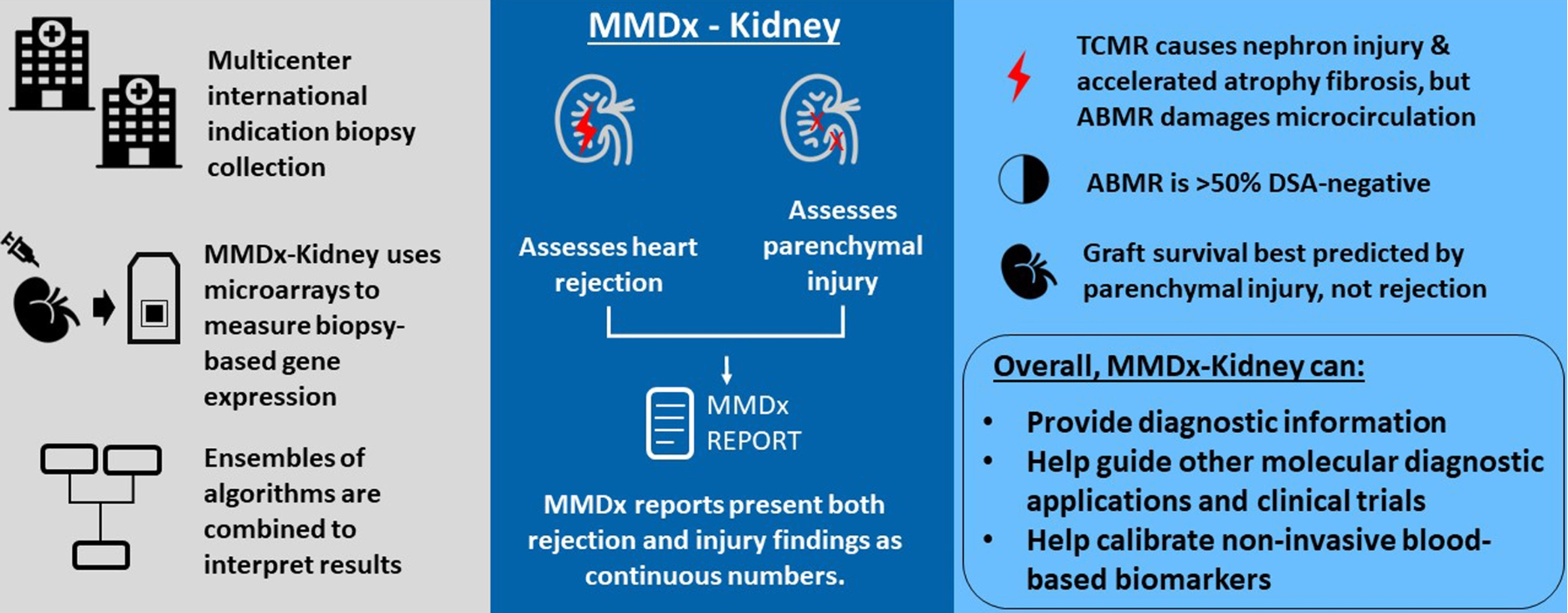

MMDx combines advanced genomics and machine learning to generate actionable insights:

1. Gene Expression Profiling
2. A biopsy sample is analyzed using microarrays to measure the expression of thousands of genes simultaneously.
3. Reference Comparison
4. The molecular profile is compared against a large database of known transplant injury signatures. This database includes biopsies with confirmed rejection, injury, or healthy outcomes.
5. Molecular Classifiers
6. MMDx generates classifier scores that quantify the probability of TCMR, AMR, or other injuries. These scores guide clinicians in diagnosis and treatment planning.
7. Integrated Interpretation
8. The results are combined with clinical data, including kidney function tests and serology, providing a holistic view of graft health.

1. Early and Accurate Detection of Rejection

Traditional biopsies can sometimes miss subtle or early signs of rejection. MMDx detects molecular changes before visible tissue damage occurs, allowing for timely intervention.

2. Objective and Reproducible

Unlike histology, which can vary depending on the pathologist’s experience, MMDx provides standardized, machine-based results. This reduces diagnostic ambiguity.

3. Differentiates TCMR and AMR

MMDx distinguishes between T Cell–Mediated Rejection and Antibody-Mediated Rejection, even in cases where C4d staining or donor-specific antibodies are negative. This is crucial for selecting the right treatment strategy.

4. Predicts Long-Term Graft Outcomes

Molecular patterns of injury detected by MMDx correlate with future graft function, helping clinicians anticipate complications and personalize immunosuppressive therapy.

MMDx is currently used in clinical transplant centers worldwide. Its applications include:

1. Guiding immunosuppressive therapy to prevent over- or under-treatment
2. Clarifying ambiguous biopsy results (“borderline rejection”)
3. Monitoring patients longitudinally to detect subclinical injury
4. Researching transplant biology and identifying novel therapeutic targets

As genomic technologies and artificial intelligence advance, MMDx is likely to become even more integrated into routine clinical practice. Future developments may include:

1. Non-invasive molecular diagnostics using blood-based biomarkers calibrated against MMDx
2. Personalized immunosuppression plans guided by molecular injury scores
3. Integration with AI-driven predictive models for transplant outcomes

MMDx represents a paradigm shift in kidney transplant care, offering precision, objectivity, and predictive power that traditional methods cannot match. By detecting early molecular changes, differentiating rejection types, and forecasting graft outcomes, MMDx empowers clinicians to make data-driven decisions that improve patient survival and quality of life.

For anyone involved in kidney transplantation, staying updated on MMDx technology is no longer optional it’s essential.

Halloran, P. F., Madill-Thomsen, K. S., & Reeve, J. (2024). The molecular phenotype of kidney transplants: Insights from the development of the Molecular Microscope Diagnostic System (MMDx). Transplantation, 108(1), 45–71. https://journals.lww.com/transplantjournal/fulltext/2024/01000/the_molecular_phenotype_of_kidney_transplants_.12.aspx
